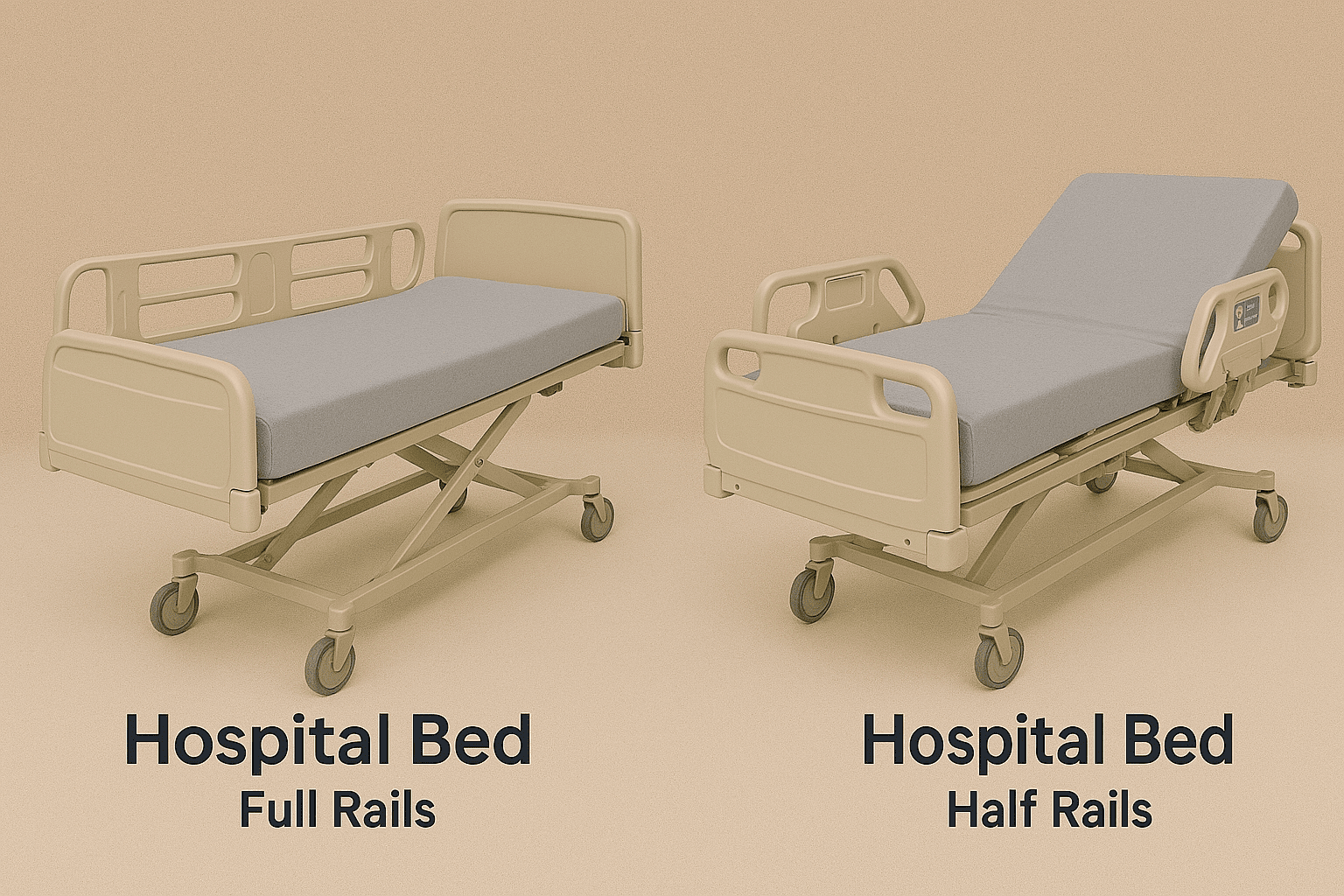

Hospital Bed Full Rails vs Half Rails: Buyer's Guide with Safety Features

Hospital bed full rails vs half rails represent a critical decision that directly impacts patient safety, comfort, and independence.

The right side rail choice for a hospital bed depends on specific fall risk levels, mobility needs, and caregiving requirements. While full-length rails provide maximum protection along the entire bed length, half rails offer a balance between safety and independence that many patients prefer.

After evaluating numerous options and safety considerations, the Costcare BPR230C Full Rails emerge as the best full-length option, providing superior protection with medical-grade construction, while the Costcare Homecare Half Rails Model BPR120C offer the ideal balance of protection and accessibility for those needing more independence.

In this comprehensive guide, we'll examine the key differences between full and half rails for both standard and bariatric hospital beds, covering safety features, patient considerations, and specific recommendations to help you make the right choice for your situation.

Full Rails vs Half Rails: Key Design Differences

The fundamental differences between full rails and half rails impact everything from safety to patient independence and caregiver access.

Design Feature	Full Rails	Half Rails
Length Coverage	80-88" (full bed length)	28-36" (mid-section only)
Mounting Position	Head to foot of bed frame	Mid-section of bed frame
Rail Height	14-18" above mattress	12-16" above mattress
Typical Weight	15-25 lbs per pair	8-15 lbs per pair
Bed Entry/Exit	Must be lowered completely	Can enter/exit at foot or head
Gap Zones	More (7 FDA zones)	Fewer (3-4 FDA zones)
Mobility Support	Full-length grip surface	Mid-section grip only

Full Length Rails: Design and Function

Full rails run the entire length of the hospital bed mattress, providing maximum coverage from head to foot. Their primary design elements include:

• Complete bed coverage: Rails span from headboard to footboard
• Substantial height: Typically 14-18 inches above the mattress surface
• Fixed or adjustable options: Some models can be partially lowered at specific sections
• Locking mechanisms: Secure in both raised and lowered positions
• Mounting brackets: Attach to the bed frame at multiple points

The Costcare BPR230C Full Rails represent excellent full-length protection with their durable steel construction and secure locking system.

Full rails excel at:

• Maximum fall prevention for high-risk patients
• Complete protection during sleep movements
• Extensive surface area for repositioning support
• Fixed guidance for confused or disoriented patients
• Substantial support for physical therapy exercises

Half Length Rails: Design and Function

Half rails cover only a portion of the bed's length, typically the center section where most movement occurs. Their key design features include:

• Mid-section coverage: Usually 28-36 inches in length
• Strategic positioning: Aligned with the torso and hip area
• Lower weight: Typically 40-50% lighter than full rails
• Easier manipulation: Simpler to raise and lower
• Open ends: Allow access at both head and foot of bed

The Costcare Homecare Half Rails Model BPR120C offer ideal mid-bed protection with easy operation and secure mounting.

Half rails excel at:

• Balancing safety with independence
• Providing targeted support where most needed
• Allowing easier bed entry and exit
• Creating less institutional appearance
• Supporting mobility while allowing freedom

Safety Considerations: Preventing Falls and Entrapment

Patient safety involves balancing fall prevention with entrapment risk management, making rail selection critical.

Fall Prevention Capabilities

Fall risk is a primary consideration when selecting bed rails for elderly or mobility-impaired patients.

Full rails provide superior fall prevention through:

• Complete coverage: Protection along the entire bed length
• Higher barriers: Typically taller than half rails
• Continuous protection: No gaps at head or foot
• Sleep movement security: Prevents rolling out during sleep
• Disorientation protection: Blocks exit attempts when confused

For maximum fall protection, the Emerald Heavy Duty Swing Down Rails offer robust construction while maintaining ease of access for caregivers.

Half rails offer moderate fall protection with:

• Targeted coverage: Protection at the bed's mid-section
• Positional reminders: Physical cues to bed boundaries
• Partial barriers: Prevent most accidental rolling
• Alert function: Wake patient when reaching rail
• Strategic placement: Protection where movement is most common

Entrapment Risk and FDA Guidelines

FDA Entrapment Zone	Full Rails Risk	Half Rails Risk
Zone 1: Within rail	Higher (more openings)	Lower (fewer openings)
Zone 2: Between rail and headboard	Present	Not applicable
Zone 3: Between rail and mattress	Higher (longer area)	Lower (shorter area)
Zone 4: Between rail and footboard	Present	Not applicable
Zone 5: Between split rails	Possible	Possible
Zone 6: End of rail	At both ends	At both ends
Zone 7: Between mattress and rail end	Higher (full length)	Lower (partial length)

Entrapment risks must be carefully managed regardless of rail type chosen.

FDA guidelines identify seven zones of entrapment risk:

• Full rails create more potential entrapment zones due to their length
• Half rails eliminate certain zones entirely (particularly headboard/footboard junctions)
• Newer rail designs of both types feature anti-entrapment improvements
• Gap dimensions should conform to FDA guidelines (less than 60mm or more than 318mm)

For reduced entrapment risk with swing-down functionality, the Costcare BPR200T Swing Down Half Rails offer modern safety design with caregiver-friendly operation.

Entrapment mitigation strategies include:

• Proper mattress sizing to eliminate gaps
• Gap fillers and bumper pads
• Side rail covers
• Regular maintenance and inspection
• Proper installation according to manufacturer specifications

Patient Independence and Mobility Support

The balance between safety and independence is a crucial consideration when selecting between rail types.

Access and Independence Considerations

Patient independence directly impacts quality of life and recovery outcomes.

Full rails present independence challenges:

• Require assistance to lower for bed entry/exit
• Create complete barriers when raised
• May increase dependency on caregivers
• Potentially cause psychological impacts from confinement feeling
• Often require two-handed operation

Half rails enhance independence through:

• Open areas allowing unassisted bed entry/exit
• Maintained safety during sleep
• Partial support during movement
• Reduced feeling of confinement
• Accessible design for self-operation

For adjustable length options, the Icare Extendable Side Rail offers versatility to match changing independence levels.

Independence factors to consider include:

• Patient cognitive status
• Physical mobility level
• Transfer capability
• Psychological impacts
• Day vs. night needs

Mobility Support and Repositioning Assistance

Beyond safety, rails serve important functions for patient mobility support.

Full rails provide extensive mobility support:

• Longer grip surface for repositioning
• Support along entire bed length
• Multiple grip points for different positions
• Greater leverage for self-movement
• Full-length stability for exercises

Half rails offer targeted mobility assistance:

• Strategic support where most needed
• Helpful grip points for sitting up
• Support for mid-bed repositioning
• Less interference with natural movement
• Compatible with transfer techniques

Specialized options like the Icare Occupation Therapist U-Assist Side Rail are designed specifically for enhanced mobility support.

Different rail types support mobility in specific ways:

• Assist bars for sitting up
• Grab rails for repositioning
• Transfer supports for bed exit/entry
• Therapy rails for exercise support
• Positioning aids for comfort adjustment

Caregiver Considerations and Access

The impact of rail choice on caregiving activities significantly affects both patient care and caregiver wellbeing.

Caregiving Factor	Full Rails	Half Rails
Bed Making	Must be lowered completely	Can work around raised rails
Patient Transfer	Requires complete lowering	Can use open areas
Bathing/Hygiene	More difficult access	Better side access
Feeding Assistance	Often requires lowering	Easier side access
Emergency Access	Slower (must lower rail)	Faster (open areas)
Physical Therapy	More barriers to work around	Better therapy access
Monitoring	May obstruct visibility	Improved visualization

Care Delivery and Bedside Access

Efficient care delivery requires appropriate bedside access for various activities.

Full rails create access challenges for:

• Bathing and hygiene care
• Wound dressing changes
• Physical therapy exercises
• Feeding assistance
• Medical procedures
• Linen changes

Half rails improve caregiving through:

• Open areas for direct patient access
• Reduced need to constantly lower/raise rails
• Better visibility of patient condition
• Easier positioning for care tasks
• Faster emergency access when needed

For optimal caregiver access with full protection capability, the Costcare BPR300 Composite Swing Down Rails offer quick-release functionality with lightweight operation.

Access considerations include:

• Frequency of care interventions
• Types of care required
• Caregiver physical capabilities
• Emergency access requirements
• Time efficiency factors

Rail Operation and Ergonomics

The physical operation of bed rails impacts caregiver strain and efficiency.

Full rail operational challenges:

• Heavier weight (15-25 lbs per pair)
• Longer lever arms requiring more strength
• Two-handed operation often required
• More complex locking mechanisms
• Greater physical effort to raise/lower

Half rail operational advantages:

• Lighter weight (8-15 lbs per pair)
• Smaller size for easier handling
• Often single-handed operation
• Simpler mechanisms
• Less physical effort required

For caregivers with limited strength, the Medacure SoftSecure Swing Medical Bed Rail offers lightweight design with smooth operation.

Ergonomic factors include:

• Caregiver strength and mobility
• Frequency of adjustments needed
• Rail weight and balance
• Locking mechanism complexity
• Space constraints during operation

Specialized Rail Types for Specific Needs

Beyond standard full and half rails, specialized designs address unique patient and caregiver requirements.

Swing-Down and Folding Rail Options

Swing-down rails combine safety with improved access and operation.

Key advantages of swing-down designs:

• Rapid lowering for emergency access
• No removal needed during care
• Reduced storage issues
• More ergonomic operation
• Better caregiver access

The Emerald Heavy Duty Swing Down Rails provide robust protection with easy swing-away functionality.

Swing-down rails come in several configurations:

• Full-length swing-down
• Half-length swing-down
• Quarter-length swing-down
• Split swing-down sections
• Spring-assisted operation

Application considerations include:

• Space requirements for swing radius
• Clearance needed for full operation
• Locking mechanism security
• Weight and balance during motion
• Pinch point prevention

Assist Bars and Specialized Mobility Supports

Specialized assist devices focus on patient mobility rather than just containment.

Assist bar advantages include:

• Support for sitting up or standing
• Transfer assistance capabilities
• Smaller footprint than full rails
• Greater independence promotion
• Less restrictive appearance

The Emerald Q Assist Bar Medical Bed Assist Rail provides targeted support for mobility-focused patients.

Common assist device types include:

• Q-bars for sitting assistance
• Transfer poles and handles
• Pivot bars for leverage
• Bed canes for standing support
• Side handles for repositioning

These specialized supports offer advantages for:

• Rehabilitation patients
• Those with partial mobility
• Patients needing transfer assistance
• Individuals maintaining independence
• Those with upper body strength but limited lower mobility

Bariatric Considerations for Bed Rails

Bariatric patients require specially designed rails to ensure safety and functionality.

Reinforced Construction for Higher Weight Capacity

Bariatric rails for bariatric hospital beds require enhanced durability and support.

Bariatric rail reinforcements include:

• Heavier gauge steel construction
• Additional support brackets
• Reinforced mounting hardware
• Thicker tubing and components
• Higher weight capacity ratings (600-1000 lbs)

The Costcare BPR150C Bariatric Half Rails feature specialized reinforcement for higher weight capacities.

Construction considerations include:

• Load rating compatibility with the bed
• Material strength and rigidity
• Mounting system durability
• Impact resistance
• Operational strength requirements

Width and Length Adaptations for Bariatric Beds

Bariatric rails must accommodate the increased dimensions of bariatric beds.

Size adaptations include:

• Extended length for longer bariatric beds (84"-88")
• Wider coverage for expanded beds (42"-60")
• Proportional scaling for proper coverage
• Multiple mounting position options
• Extended reach for caregiver access

Different bariatric bed models like those in our bariatric hospital bed collection require specifically matched rail systems.

Dimensional considerations include:

• Bed width compatibility
• Extended length requirements
• Gap prevention with wider mattresses
• Proper coverage percentage
• Mounting bracket positioning

Installation and Compatibility Considerations

Proper installation and compatibility are essential for rail safety and function.

Compatibility Factor	Full Rails	Half Rails
Bed Frame Types	More specific mounting requirements	Often more universal compatibility
Mattress Compatibility	More sensitive to mattress dimensions	Less affected by mattress size
Mounting Hardware	More complex, multiple points	Simpler, fewer attachment points
Articulation Impact	May restrict some bed movements	Typically less restrictive
Installation Difficulty	More complex, often professional	Simpler, sometimes DIY possible

Bed Frame Compatibility and Mounting Systems

Key mounting considerations include:

• Frame material and thickness compatibility
• Mounting point availability on the bed frame
• Clearance for articulation and movement
• Hardware security and stability
• Cross-compatibility between brands

Our hospital bed collection includes models with pre-designed rail compatibility.

Mounting systems vary by design:

• Clamp-on brackets
• Bolt-through attachments
• Socket insertion systems
• Channel slide mounts
• Quick-connect systems

Mattress Compatibility and Gap Prevention

Proper mattress fit with rails is critical for preventing dangerous gaps.

Gap prevention considerations include:

• Mattress width matching rail specifications
• Mattress edge firmness and compression
• Height relationship between mattress and rails
• Edge-to-rail distance measurement
• Use of gap fillers when needed

Our hospital bed mattress selection includes options precisely sized for specific bed and rail combinations.

Compliance requires attention to:

• FDA dimension guidelines
• Manufacturer mattress recommendations
• Proper rail height above mattress surface
• Regular inspection for shifting or compression
• Gap filler use where recommended

Our Top Recommendations for Different Needs

Based on our comprehensive evaluation, here are our top rail recommendations for different situations.

Best Full Rails for Maximum Protection

For elderly individuals with high fall risk, dementia, or disorientation, the Costcare BPR230C Full Rails provide superior protection with:

1. Complete bed coverage: Full-length protection on both sides
2. Medical-grade construction: Durable steel tubing built for long-term use
3. Secure locking: Positive engagement in both raised and lowered positions
4. Universal compatibility: Fits most standard hospital bed frames
5. Smooth operation: Well-balanced for ease of raising and lowering

Best Half Rails for Balance of Safety and Independence

For those needing a balance of protection and independence, the Costcare Homecare Half Rails Model BPR120C offer:

1. Strategic protection: Mid-bed coverage where most movement occurs
2. Independence-friendly: Open ends allow unassisted bed entry/exit
3. Support functionality: Assists with repositioning and sitting up
4. Simple operation: Lightweight design with smooth movement
5. Home-friendly appearance: Less institutional look and feel

Best Swing-Down Rails for Caregiver Access

For situations requiring frequent caregiver access while maintaining safety, the Costcare BPR200T Swing Down Half Rails provide:

1. Quick-release function: Rapid lowering for emergency access
2. No removal needed: Rails remain attached when lowered
3. Ergonomic operation: Spring-assisted movement reduces strain
4. Secure locking: Stable in both raised and lowered positions
5. Dual functionality: Combines protection with accessibility

Best Specialty Support for Mobility Assistance

For elderly individuals focusing on mobility maintenance and transfer assistance, the Emerald Q Assist Bar Medical Bed Assist Rail delivers:

1. Transfer support: Strategic design for standing assistance
2. Repositioning aid: Helps with sitting up and shifting position
3. Compact design: Minimal footprint while maximizing function
4. Independence focus: Promotes self-care and mobility
5. Universal mounting: Compatible with most hospital bed frames

Frequently Asked Questions

Are full rails or half rails better for dementia patients?

Full rails provide better protection for dementia patients due to complete bed coverage and reduced risk of unauthorized exit attempts. Half rails may be insufficient for those with wandering tendencies or confusion.

Can half rails provide adequate fall protection for elderly users?

Half rails offer adequate protection for elderly with moderate fall risk and good cognitive awareness, but provide less security for high-risk individuals or those with nighttime disorientation.

Do Medicare and insurance cover both full and half rails?

Medicare typically covers medically necessary bed rails when prescribed by a physician, regardless of rail type. Coverage requires proper documentation of medical necessity and purchase through approved suppliers.

Can I install different rail types on the same hospital bed?

Most hospital beds can accommodate different rail types, often allowing half rails at the head and assist bars at the foot for a customized approach to safety and independence.

What are the entrapment risks with each rail type?

Full rails create more potential entrapment zones including rail-to-headboard and rail-to-footboard gaps, while half rails eliminate these particular zones but still require proper mattress fit to prevent gaps.

How do I know which rail height is appropriate for my situation?

The appropriate rail height should extend at least 5-6 inches above the compressed mattress surface, providing protection while allowing comfortable arm positioning when the rail is used for support.

Can bed rails be added to a regular bed instead of a hospital bed?

Universal bed rails can be added to regular beds, but they provide less stability and safety than rails designed specifically for hospital beds with proper mounting systems.
