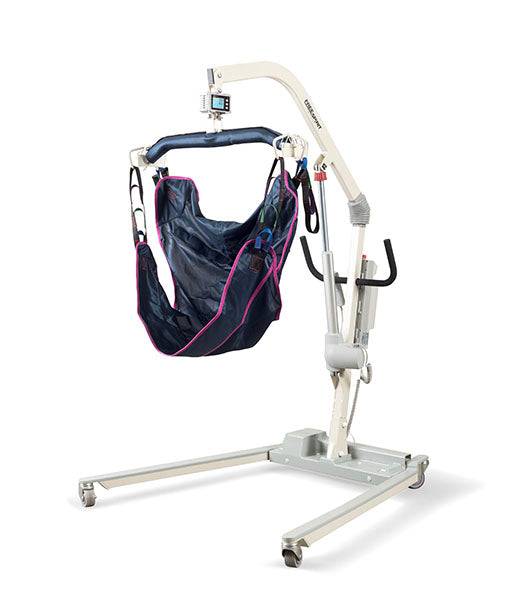

Introducing the Bariatric Patient Lift with optional Digital Scale by Medacure. This dual purpose lift is perfect for both standard and bariatric patients with its 660 lb. weight capacity. The powerful dual motors allow for easy and safe lifting from floor to 70" high. With an ultra-wide power base that expands from 28" to 45", this lift provides a secure and sturdy lift for facilities with multiple needs. Say goodbye to manual lifting and hello to a safer option for both caregiver and patient. Battery is included.
Dual motors power the lift range and legs to open and close

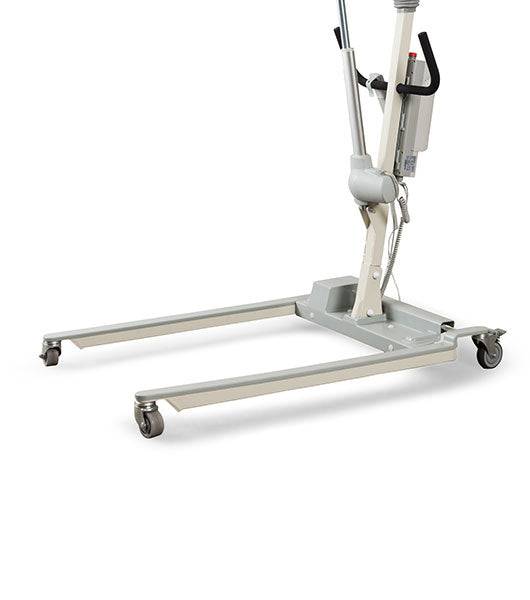

Ultra wide leg opening easily wraps around bariatric wheelchairs and equipment
50” extra long leg length for increased stability
Oversized soft foam handle for increased control when moving the lift

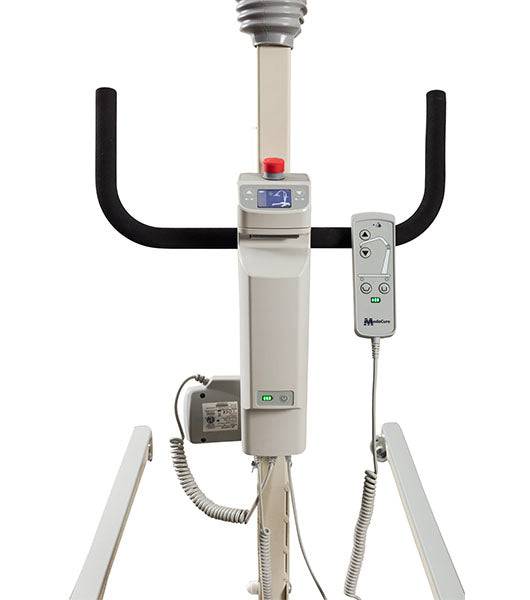

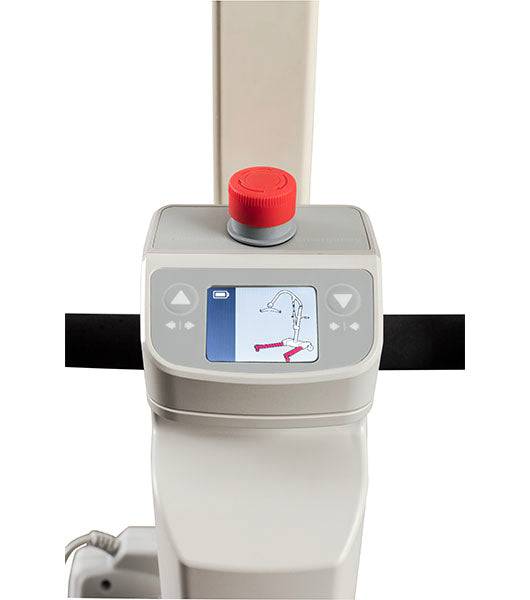

Emergency stop button locks the lift in place
CPR function lowers and raises the lift when the battery is discharged
Total pinch point protection

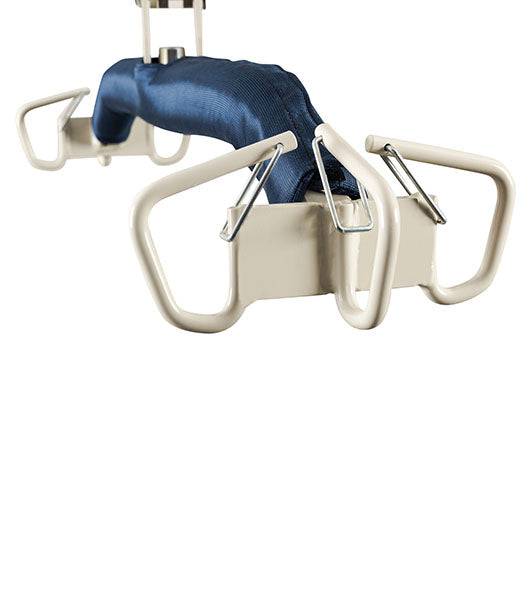

Padded swivel bar protects residents head
Quick release battery eliminates downtime
Battery can be replaced immediately with separate charging base
Battery can also be charged on board
LED’s show battery charge level

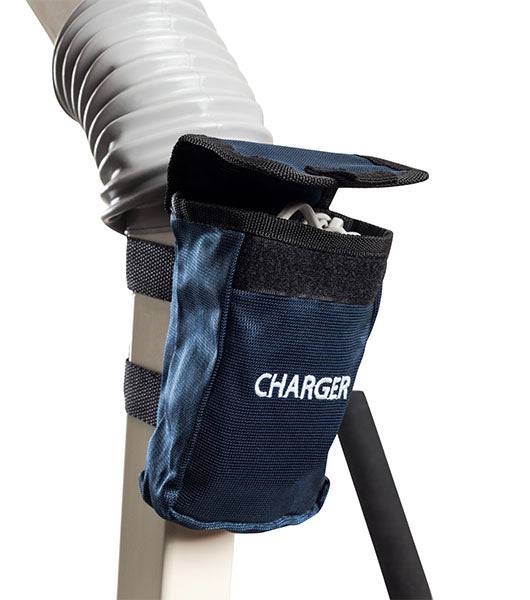

Charger case stores the charger plug on the lift
Function | Specification |
LIFTING RANGE | 28″ – 70″ |
BASE WIDTH | 45″ (OPEN) / 28″ (CLOSED) |
POWER BASE | YES |

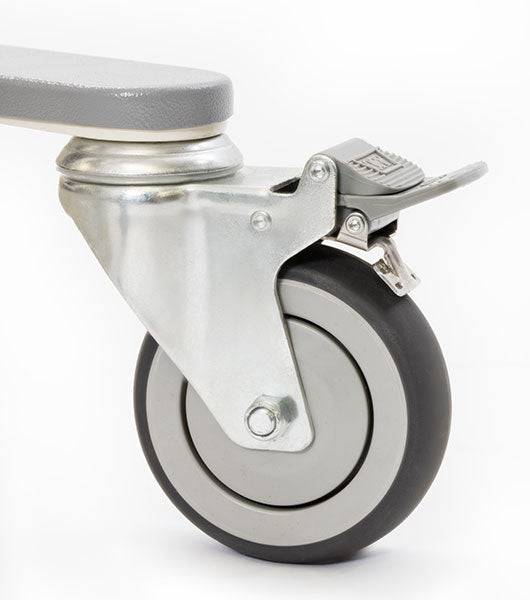

CASTER SIZE | FRONT: 3″ SWIVEL / REAR: 4″ LOCKING |
BED CLEARANCE | 4.5″ |
ACTUATOR BRAND | TIMOTION |
WEIGHT CAPACITY | 660 LBS. |
Part # | Description |
FS660T-H/L | T-MOTION HI/LO MOTOR |
FS660T-F | T-MOTION POWER BASE MOTOR |
FS660T-RC | PENDANT |
FS660T-B | BATTERY |
FS660T-CB | CONTROL BOX |
FS660T-CH | CHARGER PLUG |
FSCB | CHARGING BASE |
DS1100 | DIGITAL SCALE |
FS660-C3 | FRONT CASTOR – 3″ |
FS660-C4 | REAR LOCKING CASTOR – 4″ |
FS660T-CH/P | CHARGER POUCH |
FS660T-HA/B | HANGER BAR |
FS660T-HA/C | HANGER BAR COVER |
FS660T-CB/B | BRACKET FOR CONTROL BOX |
FS660T-CPP | COVER FOR PINCH POINT |
FS660T-PC/B | PLASTIC COVER – BACK OF BASE |
FS660T-PC/L | PLASTIC COVER – LEG |
Valid for 15 year on frame; 3 year on electronics; 1 year battery and pendant warranty and lifetime support. Whenever you need any assistance, we're only an email away.
